Soil Waste and Vent System

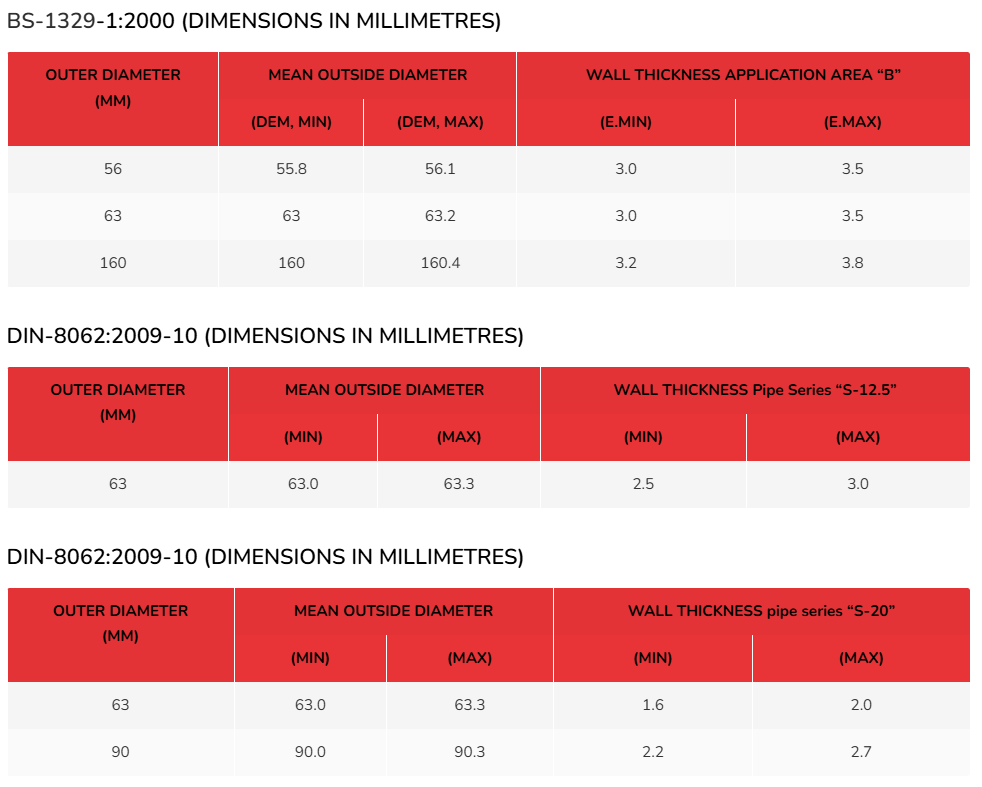

(Standard BS EN-1329/DIN-8062)

Un-Plasticized polyvinyl chloride (U-PVC) drainage Pipes & Fittings discharge inside the building structure. Un-Plasticized polyvinyl chloride (U-PVC) Fittings is used for non-pressure underground drainage and sewerage.

Popular Pipes produces a range of UPVC pipes for above and below ground use made from virgin raw material. It has full range of fittings in solvent joint for all sizes. The pipes are produced as per standard BS EN 1329. Sizes Range from 56mm to 160mm. Popular Pipes can provide a range of fittings from its own brand.

SIZE RANGE: Pipes & Fittings
56mm, 63mm, 82mm, 90mm, 110mm & 160mm
COLOR: White

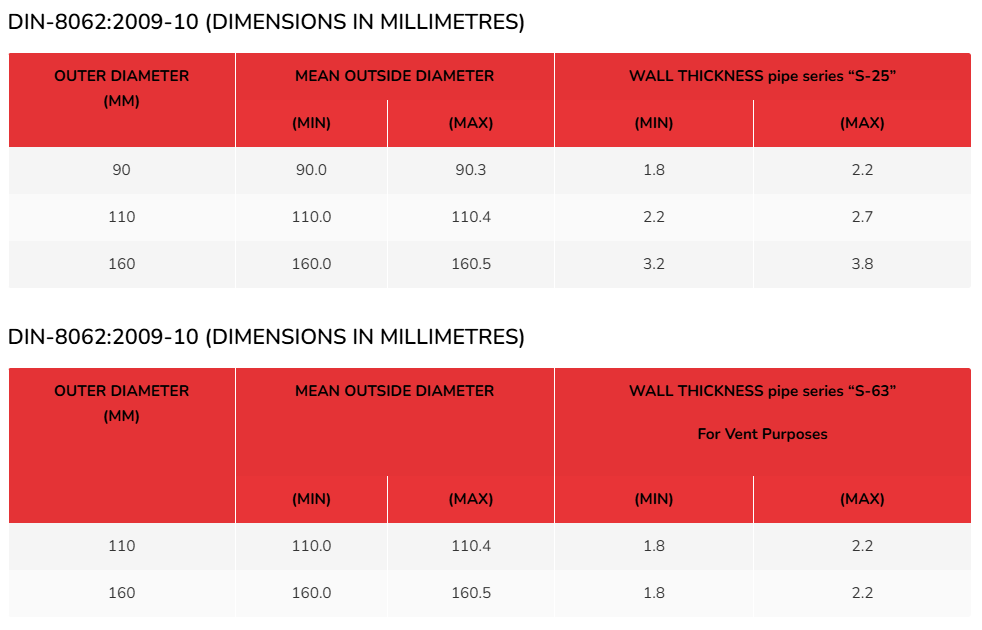

(Standard DIN-8062)

Popular Pipes produces a range of UPVC pipes made from virgin raw material as per DIN-8062 standard.

SIZE RANGE: Pipes & Fittings
63mm, 90mm, 110mm & 160mm

COLOR: White

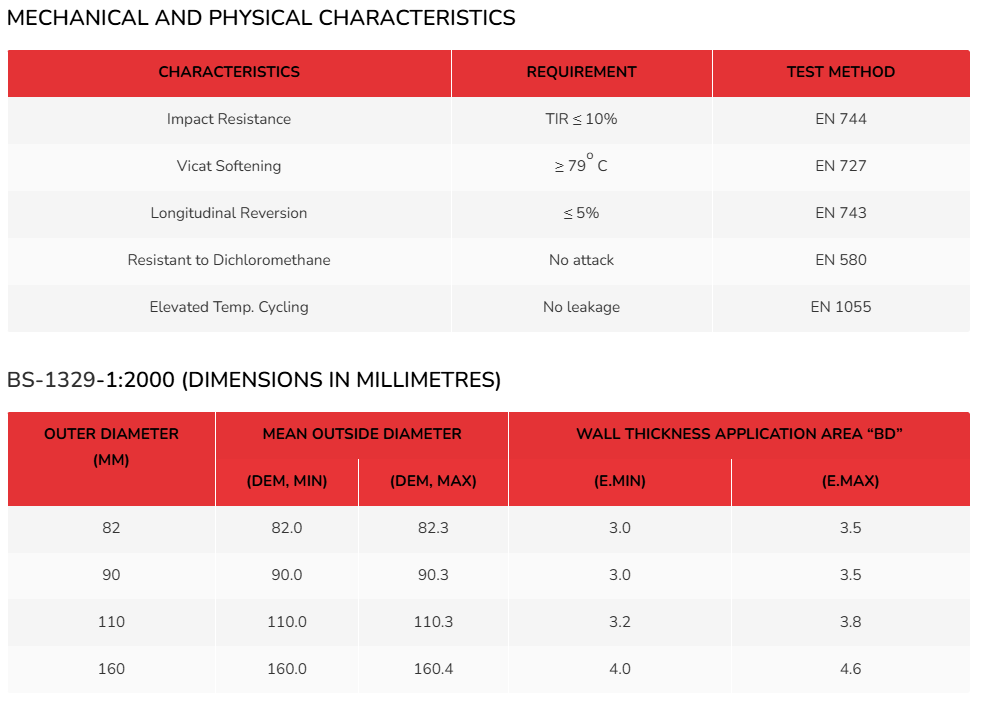

General Properties

  • It can be joint with solvent cement.
  • Tough, impact resistant.
  • Different lengths available 3m, 4m, 6m. Other lengths on request.
  • Superior chemical and acid resistance.
  • Outstanding mechanical properties of tensile strength.

Features

  • High Qualityof finish with smooth internal and external surface.
  • Provide low coefficient of flow friction.
  • Excellent resistance to chemicals found in domestic effluent.
  • Remain stable under elevated temperature.
  • Formulated to withstand weathering effect.

Advantages

  • Excellent Performance
  • Chemical and Corrosion Resistance
  • High Flow Capacity
  • Durability and Strength
  • Low Installation Costs

Application

Following are the applications of PVC-U pipes and fittings

  • Soil and waste discharge pipework for the conveyance of domestic waste waters.
  • Ventilation pipe work.
  • Rainwater pipework within the building structure.
